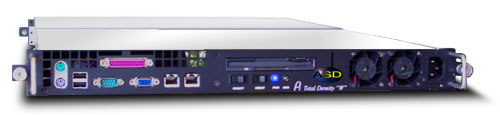

Total Density W with 4 AMD Opteron™ in 1U - Dense 64-Bit Computing
Total Density W - 1U


SPECIFICATIONS:

Processors -
2 or 4 Opteron™, Athlon MP™, XEON™, Pentium 4™
Processor Speed - Highest Available
Memory - RDRAM / DDR266 - DDR333 and up to 32GB ECC/REG
Hard Drives - 2 or 4, IDE or SCSI up to 250 GB
RAID - Available
Ethernet Ports - Up to 14 in combinations of 10/100 and 10/100/1000
Expansion Slot - 2 - 64-bit / 32-bit / PCI-X / Hyper-Transport
CD-ROM / DVD-ROM Option - 2
Floppy Option - 2
Power Supply - 250W - 400W
Rack Capabilities - Telco or 4 post rack
Rack Standard Height - 1U
Depth - 28 inches
FCC, UL


Cooling in the Round™
The Total Densiy W™ is combined with the Cooling in Round™ Technology making it an Extremely Reliable. Patent Pending, Cooling in the Round™ is a superior technological design enabling cooling across crucial components, such as CPU's, Hard Disks, Power Supplies and other components for INCREASED Reliability and performance.

One Sided Access™
Integration and administration are made easier with One Sided Access™ where all connections, power, peripherals and controls are accessed on the same panel.

Modular Manageability
The Total Density W™ is comprised of two identical independent 1U modules
mounted back to back hence the name double U "W", with a total depth
of 28 inches. The Total Density W™ server solutions have independent power supplies for each motherboard within the system. Modularity makes
the Total Density W™ more flexible. As an example, AMD CPUs could be used on one end and Intel CPUs on the other for specific application needs.

Easy maintainability with modular rail mounting. Each module slides
out of the rack independently allowing the opposite end to still
operate. Standard Form Factor Total Density W™ systems are high density, 4 processors, 1U servers.

Lan Adapter Tags
All Total Density™ products leave the manufacturing floor with LAN Adapter IDs clearly visible to make finding the server easy in a large farm.
